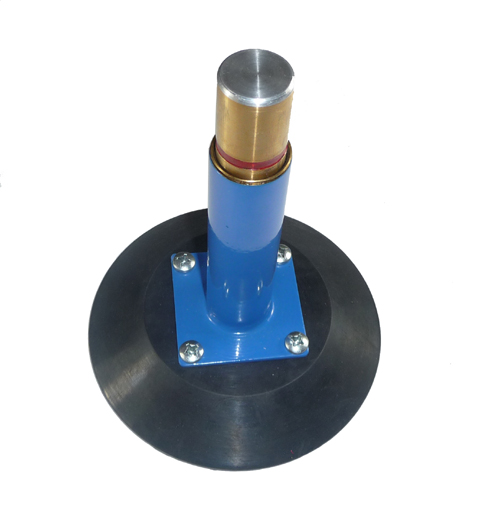

6" Vertical Vacuum Suction Cup with Metal Handle

<< Previous in Vacuum Suction Cups Next in Vacuum Suction Cups >>

List Price: $65.00
Sale Price: $49.50
Item Number: ASVC8858A5

This cup provides comfortable hand placement when ordinary handles can't. A large volume pump permits quick attachment on both curved and flat surfaces. A non-slip, solid hold makes the cup well-suited for windshield replacement and auto body dent pulling. Supplied with pad protector. 6" [153 mm] diameter. 70 lb [32 kg] capacity per cup.


  • Durable metal handle, designed for convenient hand placement.
  • Large-volume pump for quick attachment on curved or flat surfaces.
  • Red-line indicator warns users of any vacuum loss.
  • Check valve allows repumping without loss of remaining vacuum.


  • Vacuum Pad: Concave, 6” [153 mm] diameter (model LJ6)
  • Minimum Radius for Curved Load: 12” [305 mm] Load Capacity: 70 lb. [32 kg] per cup
The suction cup does not come with a plastic carrying box. It comes with a card board box.
