Gison Edge/Seam Polishing Auxiliary Base GPW-A02B

<< Previous in New Products Next in New Products >>
Straight Edge Auxiliary Base
List Price: $295.00
Sale Price: $249.00
Item Number: GPW-A02B

Options

Include GPW-7 Air Polisher
Including beveling clamp
Yes, please add beveling clamp for GPW-7 (+ $24.50)
No, thanks!

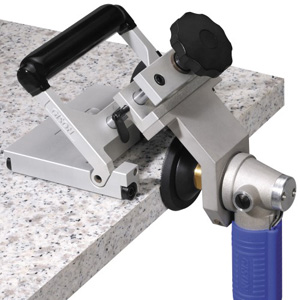

GPW-A02B edge polishing auxiliary base is used together with air polishers to accurately polish straight edges while keeping the slab flat on fabrication table. This new product will remove the guess work and inconsistency normally exist when fabricators polish stone edges with diamond polishing pads. The product is also called Wet Air Chamfering Machine or Chamfering Auxiliary Base. It accepts maximum 3" back holder and 3" diamond polishing pads. Size of mounting hole is 2" (52mm).

While "Seam Phantom" has been increasingly popular among fabricators for seam polishing, this Gison auxiliary base is a very economical alternative. With a guide rail clamped to the slab, GPW-A02B can be easily used to polish seams with our unique diamond grinding wheel and Alpha Twisttouch turbo pads.

With beveling edge clamp, you can also use this auxiliary base to create and polish bevel edges accurately between 15 to 45 degrees.


Caution: Although the rollers for the base are made of nylon, it is possible that they may cause minor scratches on the surface of granite. To prevent that from occurring, we recommend that the polished surface be covered with masking tape before using this product.

Specifications Video
  • Polishing Thickness:  5~ 50 mm (for 4" Pad)
     5-35mm (for 3" Pad)
  • Max. Pad Size : 4" (100mm)
  • Length : 196 mm
  • Width : 150 mm
  • Height : 160 mm
  • Weight : 1.62 kgs
  • Wet Air Sander / Polisher is not included
    Works with GPW-7 air polisher
    Works to polisher 15 to 45 degree bevels also with beveling edge clamp.
Features:
  • Simple Operation
  • Perfect Finishing
  • Time Saving
  • Polishing Thickness : 5~50 mm
  • 8 rolling wheels to facilitate moving
  • Quick change the abrasive / polishing pad while working

Polisher is not included and should be ordered separately.
