Gison 90 Degree/Straight Edge Polishing Auxiliary Base GPW-A02

<< Previous in Wet Air Polishers / Grinders Next in Wet Air Polishers / Grinders >>
Straight Edge Auxiliary Base
Sale Price: $195.00
Item Number: GPW-A02

Options

Optional Air Polisher

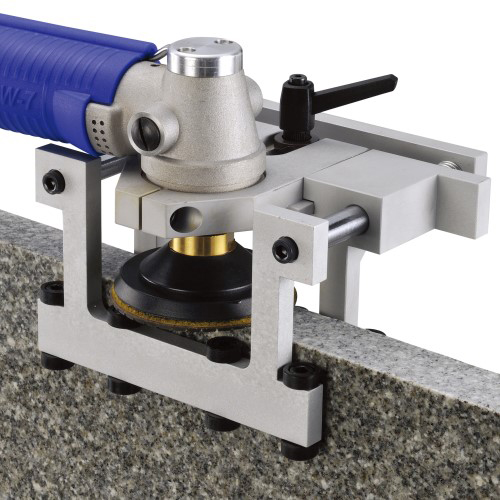

Gison 90 degree edge polishing auxiliary base is used together with air polishers to accurately polish straight edges. This new product will remove the guess work and inconsistency normally exist when fabricators polish stone edges with diamond polishing pads. The product is also called Wet Air Chamfering Machine or Chamfering Auxiliary Base. It accepts maximum 3" back holder and 3" diamond polishing pads. Size of mounting hole is 2" (52mm).

With A02 adapting clamp, this auxiliary base will work with other air polishers on the market including GPW 218, GPW 220, GPW 221, Alpha Air 658, Flex as well as Cyclone MVP wet polisher.

If you order a polisher together with this auxiliary base, the appropiate clamp for the air polisher will be included.

If you choose GPW 7 air polisher and want to have the A02 adapting clamp for other air polishers, please order the clamp separately here.

Caution: Although the rollers for the base are made of nylon, it is possible that they may cause minor scratches on the surface of granite. To prevent that from occurring, we recommend that the polished surface be covered with masking tape before using this product.

Specifications Video
    • Polishing Thickness: 10 ~ 40 mm
    • Max. Pad Size : 3" (75 mm)
    • Length : 190 mm
    • Width : 154 mm
    • Height : 134 mm
    • Weight : 1.29 kgs (3 lbs)
    • Diameter of mounting hole: 52mm (2")
    • Compatable with Gison air polisher GPW-7
    • With A02 adapting clamp, it works with GPW 218, GPW 220, GPW 221, Alpha Air 658, Cyclone MVP and Flex air polishers
    • Wet Air Sander / Polisher Not Included
