Flex Core Drilling Machine BED 55

<< Previous in Electric Drills Next in Electric Drills >>

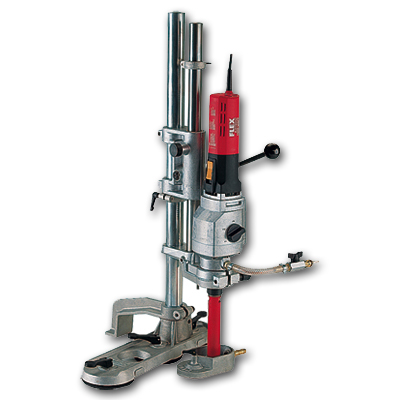

Flex BED 55 Core Drilling Unit
Flex BED 55 Core Drilling Unit
List Price: $1,999.00
Sale Price: $1,599.00
Item Number: BED55

Options

Add 4-pc core bit set
Yes (+ $132.00)
No, thanks!

The slim, stable drill stand, lateral supports and long feed column are characteristic of this drilling unit, enabling drilling of the next higher step from a lower one. Swiveling the feed column enables drilling in corners and recesses on banisters, gravestones and baths.

Drilling speed can be adapted to any bit diameter (1/2" to 3") thanks to mechanical 3-speed gearing and VR full-wave electronic control. *Diamond core bits for natural stone and concrete are to be purchased separately.

SPECIFICATIONS BED 55

FLEX GFCI operator protection
circuit breaker

For electrical safety during wet grinding. Cuts out extremely fast with the required response sensitivity (less than 15 milliseconds). It has reactuation protection at power interruption.


BED 55: Pick up water even on stairs
Fasten the water collector with suction cup up to approx. 2" in drilling position, position feed column with drill bit over the water collector, extract water.
Power input
Power output
Speed under load
00First gear
00Second gear
00Third gear
Drill bit connection
Diamond drill bit
Surface area occupied by stand
Weight (complete unit)
11 AMP
700 watts

350-1,000 RPM
800-2,300 RPM
1,600-4,600 RPM
G 1/2"
1/2" to 3"
16"x5"
31 lbs
STANDARD EQUIPMENT PART #
1 water collection
1 stationary drill stand (BD05)
1 open-ended wrence 32mm
1 GFCI operator protection circuit breaker in cable
256.370
254.436
251.475
259.990
ADVANTAGES AT A GLANCE
  • FLEX triple VR electronics: with consistent speed control by tachometer generator, overload protection, and speed selection
  • GFCI operator protector circuit breaker: integrated in cord
  • Quality shut-off carbon brushes: protects the motor against damage
  • Integrated water supply: through the gear head
  • Stationary drill stand: with precision column guide, drill stroke up to 12"
  • Water collector with suction cup: for collecting water, even on stairs
  • Drill bit connection: G 1/2"
  • Safety clutch
  • 1/2" Gas to 5/8-11 adapter is included.
4-pc core bit set includes one each 1", 1-1/4", 1-3/8" and 1-1/2" Monster dry/wet diamond core bit.
